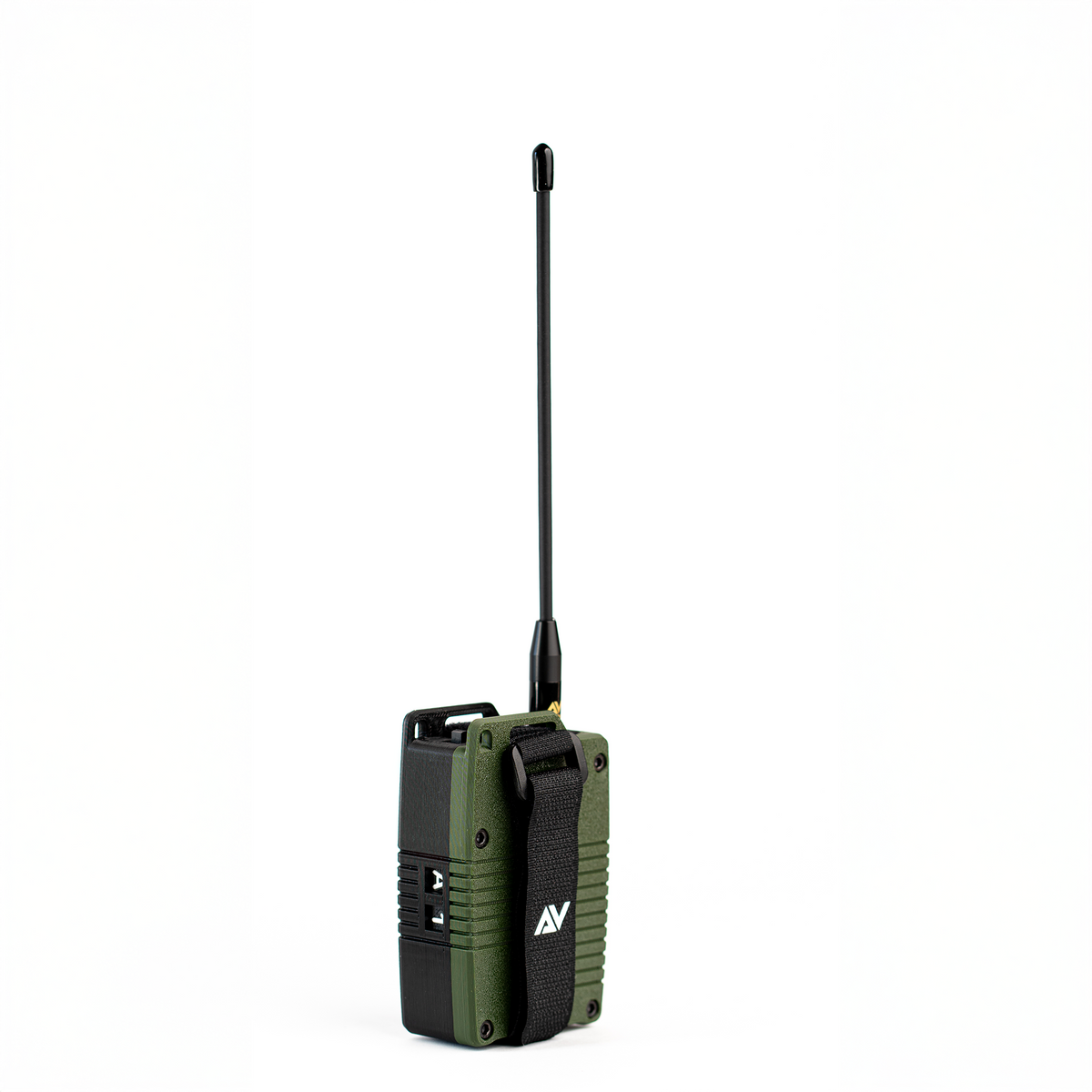

Atlavox M1 Meshtastic™ Radio w/Gizont Antenna

Off-grid text and position data with no internet, no cell service, no subscription, and no license. The M1 is a RAK WisBlock in a case built by someone who has actually opened a radio in the field — four bolts, threaded inserts, and every component mounted to the bottom half so the lid lifts away without dragging wires.

WHY IT'S IN THE SHOP

Most Meshtastic builds are a board, a battery, and hope. This one solves the boring problems: a no-solder battery switch you can reach with the thumb already holding the radio, a GPS slot for later, and alpha-numeric ID cubes so you can tell 72 radios apart when you hand them out to a team.

SPECS THAT MATTER

• RAK19007 WisBlock with RAK4630, 915 MHz (US/Canada) or 868 MHz (EU).
• Latest stable Meshtastic firmware, flashed immediately before shipping.
• 2000 mAh Li-Po with overcharge, overdischarge, overcurrent, short-circuit, and thermal protection.
• USB-C for power, charging, firmware, and serial. Runs on USB-C with no battery if you want.
• Bluetooth antenna installed. Default pairing code 123456 — change it.
• Gizont whip antenna on SMA, matched to your frequency variant.
• 92 × 58 × 29 mm. PETG and high-temp PLA, 4 walls, textured and grooved for grip.
• Three WisBlock sensor slots plus a GPS antenna slot for a RAK12500 or RAK12501 later.
• Hook-and-loop strap included. Multiple slots for lanyard, pack, or MOLLE.

WHAT'S IN THE BOX

• Assembled M1 radio with WisBlock, battery, power switch, and Bluetooth antenna.
• LoRa whip antenna and iPEX-to-SMA cable.
• Black base, forest green top, four M3×10 bolts, 2.5 mm Allen wrench.
• One alpha cube and one number cube for physical ID.
• Atlavox hook-and-loop strap.

FIELD NOTES

No screen and no button — all configuration happens over Bluetooth in the app or over USB from a computer. If you want a node you can read without a phone in your hand, this isn't it. If you want one that disappears into a pack and stays configured, it is.

Paired to a phone, you don't need the GPS module; the app shares your phone's position with the radio.

Meshtastic® is a registered trademark of Meshtastic LLC. No warranty is provided — use at your own risk.
